AIOC - Ham Radio All-in-one-Cable
AIOC - Ham Radio All-in-one-Cable
By NA6D
Share
28 in stock
Couldn't load pickup availability

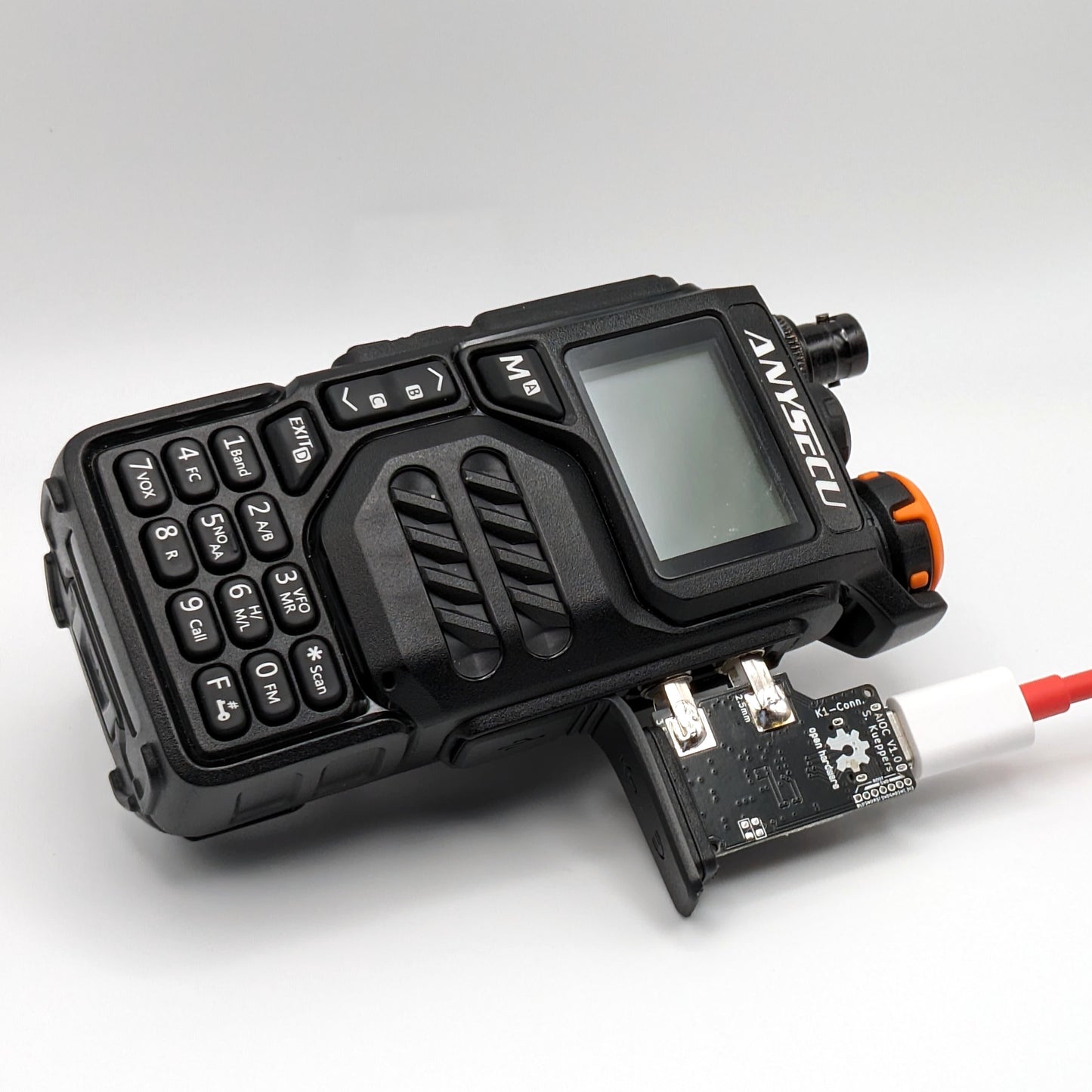

Streamline your ham radio setup with the AIOC, the "All-in-one-Cable". Eliminate the hassle of multiple separate cables for programming, audio, and PTT functions. Simplify your communications and stay connected with ease. This small, powerful USB-C adapter enables programming and digital modes for many handheld radios.
The AIOC works as a COM/Serial port for programming many radios and as a sound card for digital modes. Works with DireWolf, APRSDroid, CHIRP, VaraFM, AllStarLink (and probably many more, but not tested).
All assembled AIOCs shipped by NA6D come pre-flashed with the latest v1.2.0 firmware and are fully function tested. NA6D's AIOCs are lead-free. Requires a USB-C cable, not included.
Compatible with Linux, MacOS, and Windows 10 (or later).
Compatible with radios using Kenwood-style connectors, including most Baofengs. Not compatible with ICOM or Yaesu radios.
The AIOC is an open source design by Simon Küppers. Read more about the device at https://github.com/skuep/AIOC







Nice work.
Excellent kit and very well labeled with clear directions.
Shipped very fast, I flashed this for use as an All Star ASL3 hot spot,
It works perfectly!
I'm listening to the Alaska net as I type this.
I just ordered the USB A to C cable with chokes, mine with add on chokes is too ugly.
Now I'm considering two low power simplex links in different cities using this AIOC.
Seems a little fragile to handle. I ordered the cover (extra cost!😳). Took it off because I could not monitor the lights with it on. View hole way small and not exactly in the correct place. Cover needs a) to be included and b) needs to be clear acrylic.
So far it has worked as advertised. I used it first to program a the ht. Then flashed it to use as an interface to the Rpi 4b as an AllStar node.
It works great. I thought at first it wasn’t communicating but, it was my set up. Very nice construction. Solid performance.
