OpenTNC Cable

This high-quality, standalone radio interface cable connects your TNC to your transceiver. Featuring a standard DB9 connector on the TNC side, these cables are wired to match the classic Kantronics pinout. They serve as a direct replacement or expansion cable for the OpenTNC, as well as a cost-effective, high-reliability alternative for Kantronics and other compatible TNCs.

Available Variants

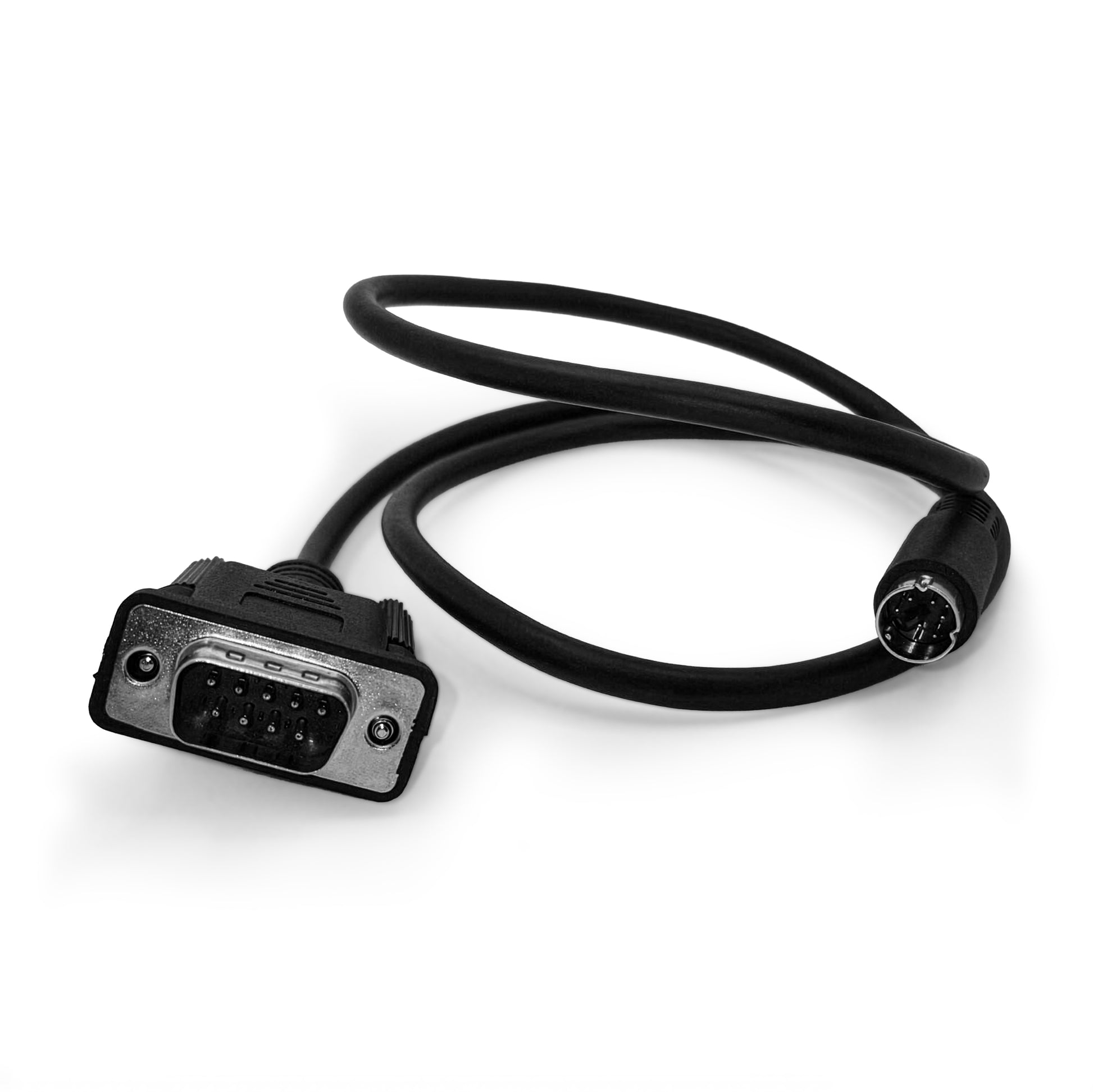

• Mini-DIN 6: Connects to the data port of most modern mobile transceivers.

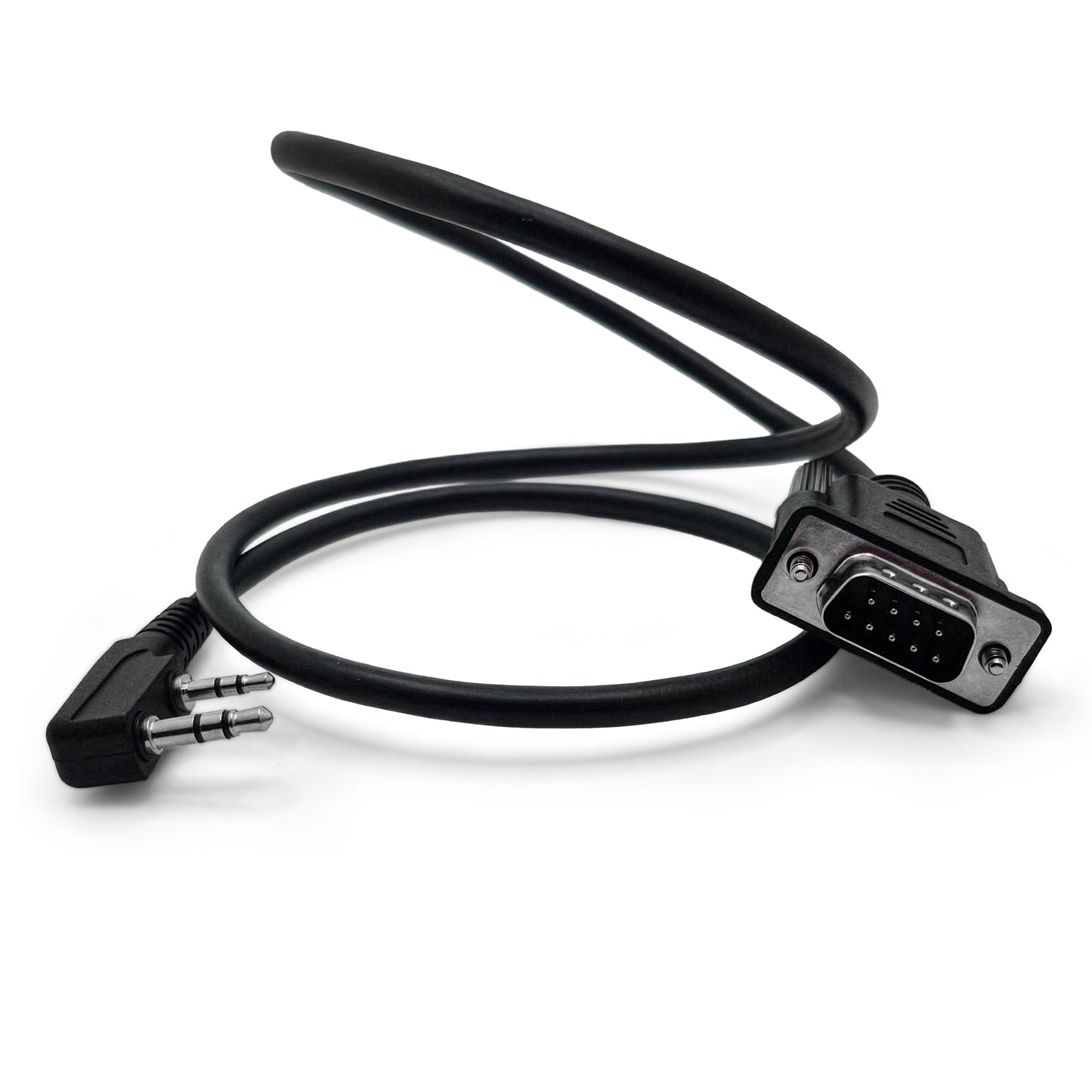

• Kenwood K1: Connects to standard handheld transceivers (HTs) utilizing the common 2-pin K1 configuration.

Technical Specifications

• Length: 60 cm
• Jacket Material: Flexible, durable Thermoplastic Elastomer (TPE)
• Shielding: Dual-shielded (foil and braided shield) explicitly engineered to mitigate RF ingress and prevent common mode noise from degrading data packet transmission.
• TNC Interface: DB9 male (OpenTNC pinout, Kantronics-compatible)

Ensure your specific TNC equipment shares the Kantronics DB9 wiring standard before using this cable with non-NA6D hardware.

Pinout Reference
